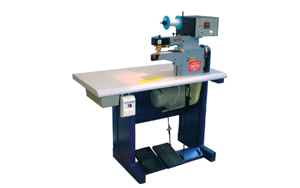

Complete with table and electronic variable speed motor with automatic positioning. APN 08 applies the reinforcing tape on shoe uppers and leather goods. The reinforcing tape is cut automatically at the end of the processed leather or in a selected point by a photocell system. The cutting of the tape can be controlled also manually in any point of the processed leather.

Oil-pneumatic upper crimping machine for shoes and boots. The machine is made in 2 models: CT FORMA with equipment for shoe.

CT FORMA ST with equipment for boots and ankle boots.

Machine to make holes for shoe laces. It is possible to make the holes on both sides of uppers simultaneously and to select, by moving the pressing truck, the quantity of the holes to be made up to a maximum of 7 holes each side. It is possible to adjust the alignment of the holes by means of 2 levers on both sides of the machine head and by means of a knob placed on the right side of the machine. It is possible to adjust the distance between the holes from a minimum of abt 10 mm and a maximum of abt 19 mm. from a centre to another. The set of 7 perforators composed by punches and dies, can be selected among 10 different sizes from 1.8 mm and 4.8 mm.

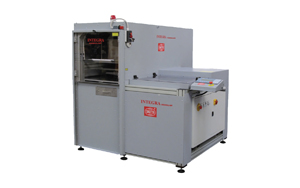

INTEGRA Modular is a 3-AXIS galvanometric laser integrated with a CNC machine that allows to exploit the most advanced LASER features: ENGRAVING, PERFORATING, MICRO-PERFORATION, RASTER EFFECT, EDGING CUTTING.

INTEGRA Modular can perform amazing products with the maximum speed and precision. The total compatibility of the template frames with the other SAGITTA machines allows studs, rivets and eyelets application, stitching, embroidery on the same product without any loss of accuracy. SAGITTA INTEGRA Modular is a high-performance LASER with GALVO HEAD and can be used either on its own as a laser only or combined with CNC nulti-heads machines for nailheads and rivets or with CNC stitching or embroidery machines to achieve unique and imaginative creations. All functions of INTEGRA Modular are controlled by a single software which is able to handle all the other SAGITTA machines combined with INTEGRA Modular in order to have a global system that allows to create any project in a simple, intuitive and quick process.

The movement of the templates is run by brushless motors combined with recirculating ball screws. The movements of X – Y axis are fast and extremely precise and allow a working area of 600 x 400 mm.. The GALVO HEAD drives the laser beam with very high speed and accuracy by special mirrors moved by electromagnetic motors, allowing higher quality results than on traditional cutting systems.

Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean massa. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus. Donec quam felis, ultricies nec, pellentesque eu, pretium quis, sem. Nulla consequat massa quis enim. Donec pede justo, fringilla vel, aliquet nec, vulputate eget, arcu. In enim justo, rhoncus ut, imperdiet a, venenatis vitae, justo. Nullam dictum felis eu pede mollis pretium. Integer tincidunt. Cras dapibus. Vivamus elementum semper nisi. Aenean vulputate eleifend tellus.

Maecenas nec odio et ante tincidunt tempus. Donec vitae sapien ut libero venenatis faucibus. Nullam quis ante. Etiam sit amet orci eget eros faucibus tincidunt. Duis leo. Sed fringilla mauris sit amet nibh. Donec sodales sagittis magna.

To apply 4 prongs nailheads with 1 head
Working area 220 x 360 mm
Power supply single-phase 230 V 50/60 Hz
Absorbed power max 0, 6 kW

Automatic attaching machine for nailheads 4 prongs with interchangeable feeder.
Control panel with adjustable quantity and speed.
Equipped with laser projector and partial counter.

Complete with table, waste exhauster with filter and brushless servo motor eco-power with adjustable speed to perform perforations on footwear, bags, leather goods etc.

To apply Nailheads on Belts, Continuous Stripes, welt and passementerie.

Complete with table, waste exhauster with filter and motor. Feeding behind the perforating rod, guides to keep parallel the edges. The machine can perforate multiple or single holes by an unhook system allowing to stop automatically the perforator.

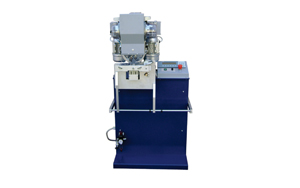

Automatic attaching machine, electric motor, single-phase, (available also as pneumatic version Mod. MG1-P) for the setting of hooks. A very versatile feeder for various type of hooks. All the functions are under the control of a microprocessor, a partial counter with reset and a total counter are available. Among the options a slow motion for TEST and a MULTIPLE SETTING to repeat a programmable sequence of a certain number of eyelets and the time between the setting. This machine can be transformed as riveting or eyeleting machine or equipped with a lower feeder for washer.

With 2 heads for belts and stripes max. width 60 mm.
to apply:
Self Piercing Rivets
Self Piercing RU Rivets (Micro-Rivets)
Strass-Rivets
Eyelets
Eyelets OU (Micro-Eyelets)
Perforation only

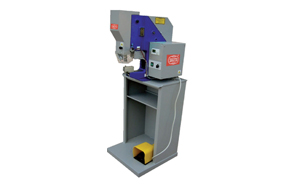

Self-Piercing eyeletting machine, complete with table, motor and one set of dies. For eyelets with shank diameter between 3.5 and 10 mm. The machine is provided with a piercing device by cam with a precise and easy adjusting, to assure a good cutting on material such leather, skin, plastic, fabric, cardboard. The feeder is easily interchangeable and every kind of eyelet can be applied with only one machine. All the functions are under the control of a microprocessor, a partial counter with reset and a total counter are available. Among the options a slow motion for TEST and a MULTIPLE SETTING to repeat a programmable sequence of a certain number of eyelets and the time between the setting.

Automatic rivetting machine, electric motor, (available also as pneumatic version Mod. MR11 R-P) for rivets with head diameter between 3 and 20 mm. The feeder, is easily interchangeable. All the functions are under the control of a microprocessor, a partial counter with reset and a total counter are available. Among the options a slow motion for TEST and a MULTIPLE SETTING to repeat a programmable sequence of a certain number of eyelets and the time between the setting.

1 or 2 Heads
to apply:
Self Piercing Rivets
Self Piercing RU Rivets (Micro-Rivets)
Strass Rivets
Eyelets
Eyelets OU (Micro-Eyelets)
Perforation only

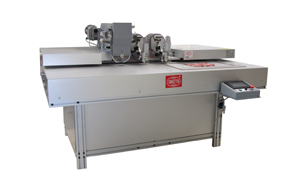

2 heads to apply Eyelets – Rivets 2 heads to apply 4 prongs Nailheads

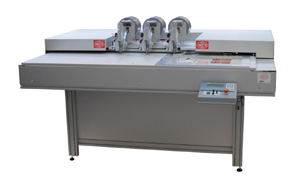

With 2 or 3 heads to apply 4 prong nailheads

With 1 head to apply 4 prong nailheads

To apply eyelets with washer with shank diameter max 8 mm. with piercing device.

To apply simultaneously rivets (upper feeder) and nails (lower feeder). All the functions are under the control of a microprocessor, a partial counter with reset and a total counter are available. Among the options a slow motion for TEST and a MULTIPLE SETTING to repeat a programmable sequence of a certain number of eyelets and the time between the setting.

Perforating and eyeletting machine with soundproofing, hand-protection device, adjustable raceway, complete with table, motor and one set of dies. This machine is equipped with an adjustable raceway which avoids the replacement of the hopper and its relevant raceway when it is necessary to change the size of the eyelet. The punch, the upper and lower die which apply the eyelet are the only parts that you have to replace according to the size of the eyelet. Their replacement is very rapid. The eyelets used have to be able to perforate. The lower die is adjustable in height to compensate the different thickness of material on which the eyelet has to be applied. Must be used an eyelet able to perforate.

MR 71 S CE Perforating and rivetting machine to attach steel shanks to insoles, with soundproofing, hand-protecting device complete with table and motor.

MR 71 / MR 71 S extra CE countries models

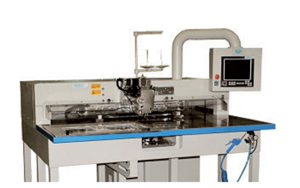

Numerical Control Sewing Machine for Footwear and Leather Goods
RODELLA TECHNOLOGIES
Sewing area: 600 x 400 mm.
Complete of:
• sewing head with independent axis;
• height adjustment of the presser foot, electronically controlled and programmable according to the thickness of the material;
• high capacity rotary hook;
• Optional: “Clutch” special thread staple device which allows clean restarts after each trimming;
• Optional: programmable trimming: particular device that allows to exclude the cutting of the bobbin thread directly from the panel to guarantee the perfection of the closure of the first sewing point;
• USB port for data transfer;
• Touch screen control panel;
• Thread breakage detector;
• LAN connection to send the programs directly from the computer;
• Optional: automatic lifting and lowering of the sewing head during the unloaded movements with the possibility to exclude it (or include it) from the panel if necessary;
• Optional: Programmable thread tension

The pleating machine SAGITTA PT 84 is a machine making straight or curved pleats to decorate shoe uppers, parts of bags and leather goods. It can pleat different materials: leather, synthetic materials and suitable fabrics. The PT 84 is a very simple and handy machine which can be easily used by unskilled staff. It can be adjusted in order to get excellent work results. Feeding speed of material variable from 0 to 6 mt./min. Adjustable pleating depth mm. 1-2-3.

Folding Machine with hot air system to reactivate polyurethane glue. RP67 AIR fold the edge in a quick and accurate way by reactivating the glue with a hot air blow. Result: a soft folding without any thickness, even on very difficult kinds of leather as they were folded by hand.

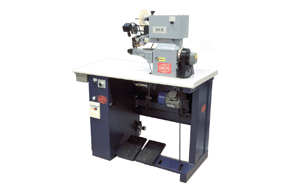

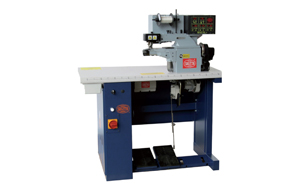

Upper thermocementing and folding machine, photocells controlled, complete with table and brushless servo motor eco-power with automatic positioning. Automatic controls by photocells:,
- cement flow and adjustable delay.
- feeding for external curves with programmable delay according to the speed.
- feeding for internal curves with programmable delay according to the speed and automatic cutting with adjustable step.
- easy selection of photosensor according to the geometry of the working leather uppers.

Upper thermocementing and folding machine complete with table and brushless servo motor eco-power

Thermocementing and folding machine for Insole covering complete with table and brushless servo motor eco-power. RP 68 TE P is equiped with a foot holder adjustable in height and a foot that can run into its own housing so that to process easily, with some further optional parts, the anatomic insoles as well. RP 68 TE P STP Thermocementing and folding machine for insole covering complete with table and brushless servo motor eco-power with automatic positioning.

Insole thermocementing and binding machine with automatic cutting of the tape. The machine is complete with table and brushless servo motor eco-power with automatic positioning. Optical fiber sensor for the automatic feeding and positioning of the tape. By changing the front and rear guides it is possible to use tapes in leather or synthetic, in rolls or pre-cut pieces from 14 to 25 mm. width. Attachment to eject the exceeding tape after cutting. Attachment to adjust the binding both on the upper and lower part of the insole. Cutting, feeding and positioning of the tape are made by means of an automatic guide with possibility to adjust the positioning point. The feeding speed of the insole can be adjusted according to the shape of the work piece and in order to facilitate the execution of the curved parts. RP 80 A can store the perimeter length of the insole in order to cut automatically the tape.

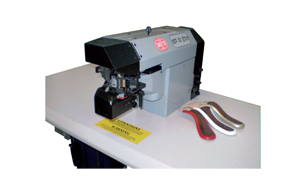

Insole binding machine to apply pre-glued tapes on pre-glued insoles. Machine complete with table and STOP motor. RP 80F is particularly indicated for the sandals producers who use synthetic, elastic, patent leather tapes which are not compatible with thermoplastic glue. Usually these materials are difficult because they can be easily marked and do not slide properly. Furthermore it may happen that thermoplastic glue cannot be used because of aesthetics and seal reasons.

RP80F avoid HAND BINDING.

RP80F is equipped with special Teflon guides, special ceramic coated hammer and anvil which allow the sliding of the pre-glued tape. The machine can use pre-cut tapes with width from 14 to 25 mm. It is possible to adjust the quantity of binding both on the upper and lower part of the insole.

The insole feeding pitch can be adjusted according to the shape of the work piece and in order to facilitate the execution of the curved parts.

Computerised thermocementing and folding machine with photocells and microprocessors. It is able to fit the requirements of any single operator since this machine is able to self store commands while making the first piece of work and then repeat these ones accurately leaving to the operator only the task to guide the piece of work. The RP NOVA V4 controls the glue flow very accurately and delivers it inside the folding, in thread shape. At the end of each working cycle, the machine stops with the hammer in an open position and sets in the automatic glue suction, preventing the glue from falling down on the upper and consequently stain it.

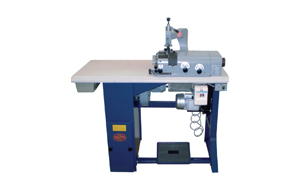

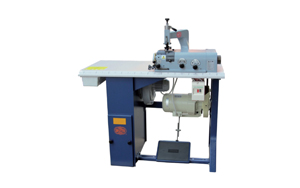

Skiving machine complete with table, clutch motor and waste exhauster system with wide container and filter. Knife speed rotation according to the feeding speed.

Skiving machine complete with table, motor and waste exhauster system with wide container and dust filter.
N.2 separate motors for the knife and the feeding.

SCA 1.03 is equipped with a lower feeding roller controlled by a brushless servo motor and can apply tapes from 12 to 20 mm. width, by changing the guides. SCA 1.03 is perfect to apply reinforcing tape on boot uppers and to avoid creases or the stretching of the tape. The cutting device is able to cut any tape and is controlled by an adjustable sensor or by a timer to execute very short piece of work. To operate this machine is very easy, as its guide device keeps the upper always in the right position.

The machine is driven by a Brushless servo motor which controls the upper feeding and is able to apply by changing the guides, tapes with a range width from 12 to 20 mm. The cutting device is able to cut any tape and is controlled by an adjustable sensor or by a timer to execute very short piece of work. To operate this machine is very easy, as its guide device keeps the upper always in the right position.

Computerised Skiving machine with servo electronic controls and exhauster system with filter incorporated.

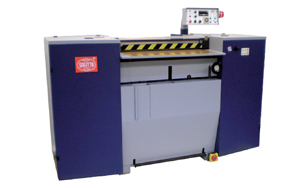

SPL 45 SX – Working width mm.450
SPL 55 SX – Working width mm.550
SPL 75 SX – Working width mm.750

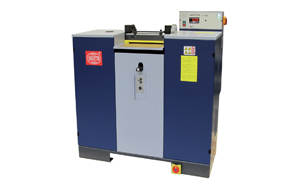

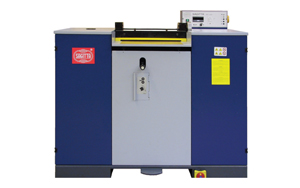

Leather Splitting Machine working width 300mm.

Splitting Machine to equalize or reduce the thickness of leather parts, synthetic, rubber, felt, cork and other materials.

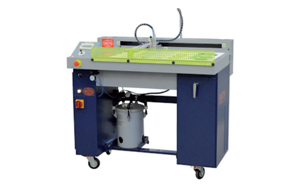

Few seconds to program and the machine is ready to spray water based glue with extreme precision and neatness. Table Top Robot is able to do linear and circular interpolations and therefore can follow very complex glue trajectories. Equipped with a joystick, Table Top Robot can self-learn in few passages the work-piece profile where to spray the glue. The operator needs just to position the glue applicator on the profile points and store them by simply pressing a button. While programming, the copy and paste function allows to accelerate the repetition of the working cycle on pieces with the same shape. The program is stored in the TTR internal memory and can be subsequently recalled and modified. Table Top Robot is equipped with USB and by connecting it to a PC it is possible to download and load programs by using the software supplied with the machine. TTR can read different file format including DXF files. Touch screen to manage the machine.
