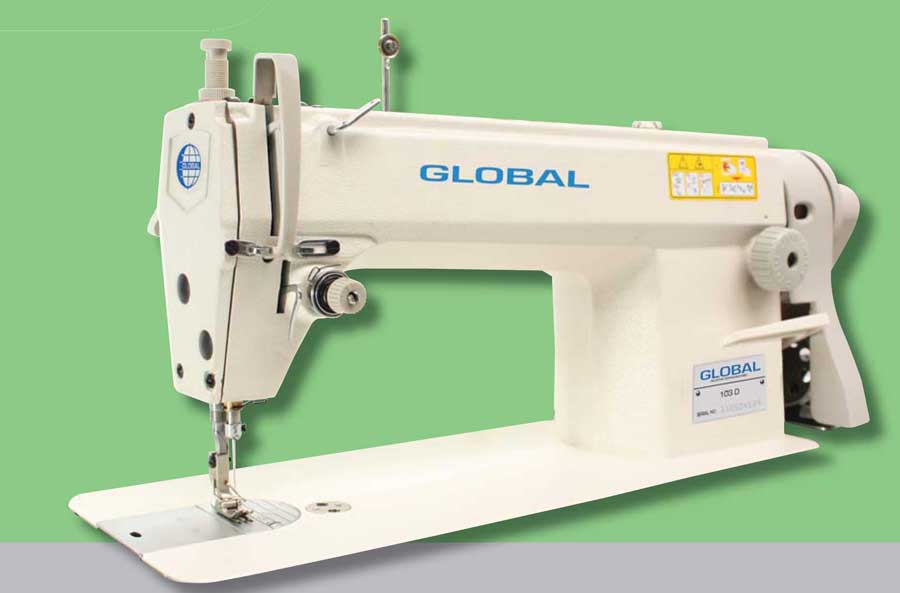

Global 103 D - HIGH SPEED, SINGLE NEEDLE LOCKSTITCH MACHINE

High speed economical single needle lockstitch machine with fully automatic lubrication.

Global 3900 Series - HIGH SPEED, SINGLE NEEDLE LOCKSTITCH MACHINE

3900 DD - High-speed, single needle lockstitch machine. This machine has fully automatic lubrication, built-in motor and a separate control box. The bobbin winder is built-in the machine head.

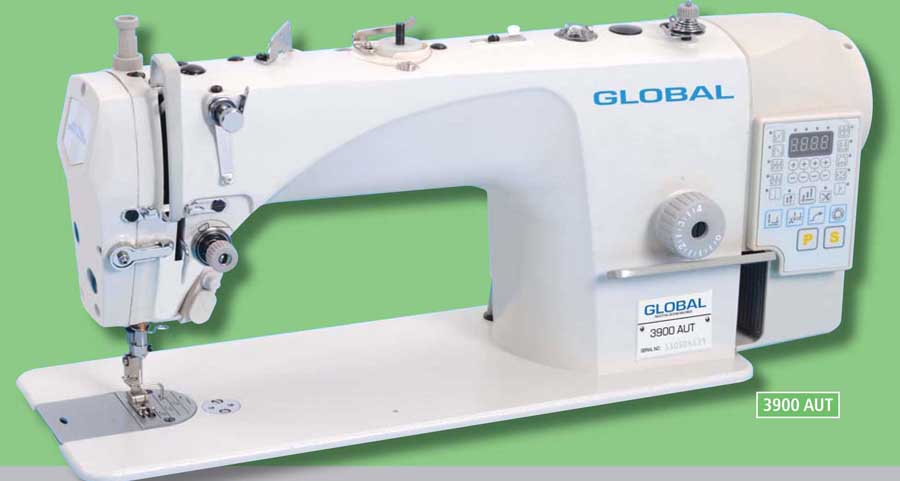

3900 AUT - All-in one, High-speed, single needle lockstitch machine with thread trimmer and automatic back tack. The machine has fully automatic lubrication and motor, control box and control panel are integrated in the machine. The bobbin winder is built-in the machine head. Presser foot lift is available as an option.

Global 333 Series - HIGH SPEED SINGLE NEEDLE LOCKSTITCH MACHINES

333 D - High speed, single needle lockstitch machine with fully automatic lubrication.

333 LH - Medium speed, single needle lockstitch machine with fully automatic lubrication and large hook.

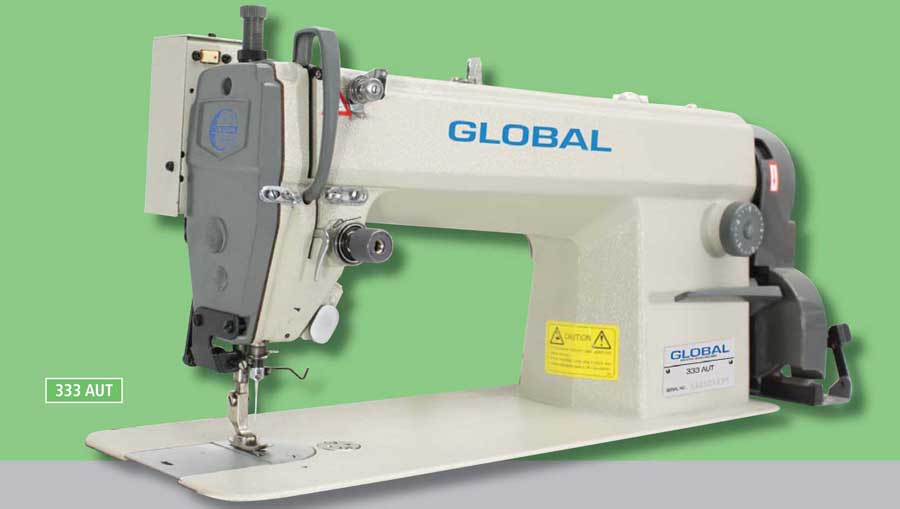

333 AUT- Same as 333 D, but with thread trimmer and automatic back tack.

333 LH-AUT - Same as 333 LH, but with thread trimmer and automatic back tack.

Global 350 AUT Series - HIGH SPEED SINGLE NEEDLE LOCKSTITCH MACHINES

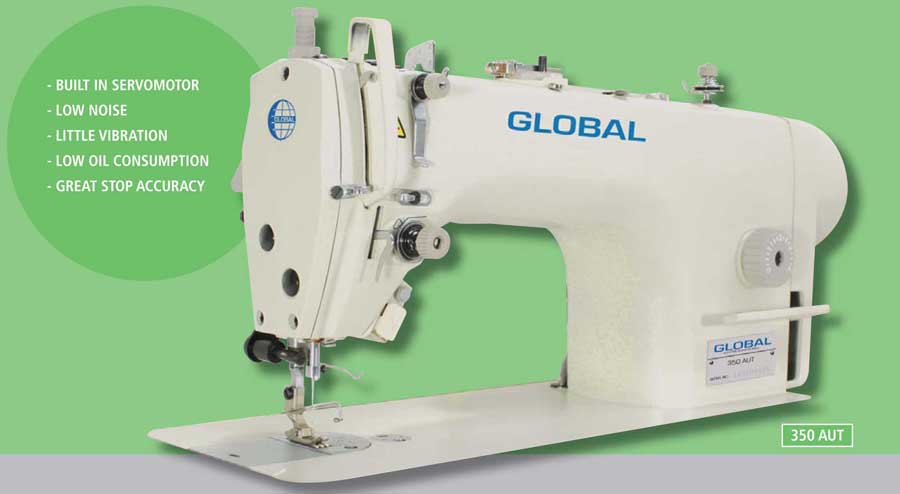

350 AUT- High speed, single needle lockstitch machine with fully automatic lubrication and driven by built-in mini servo motor. Machine is equipped with a thread trimming device, automatic back tack, presser foot lift and wiper(all electric).

350 H-AUT - High speed, single needle lockstitch machine for medium to heavy work with fully automatic lubrication and driven by built-in direct drive mini servo motor. Machine is equipped with a thread trimming device, automatic back tack, presser foot lift and wiper (all electric).

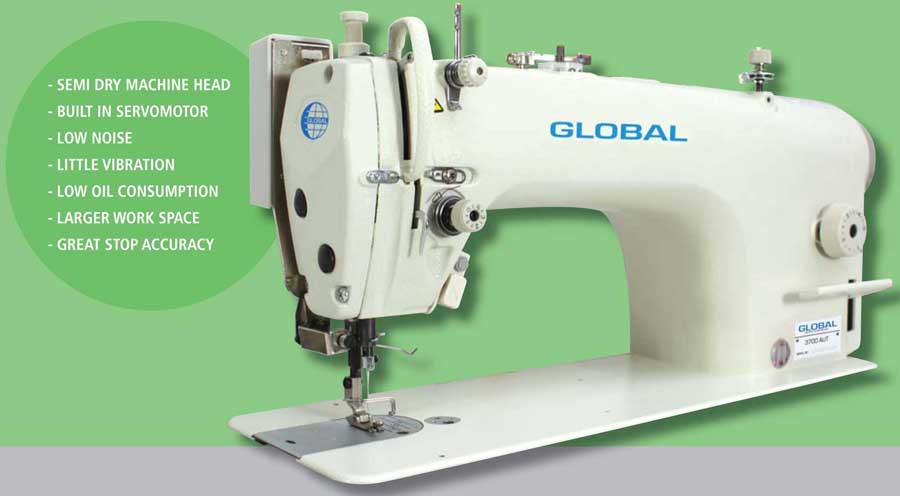

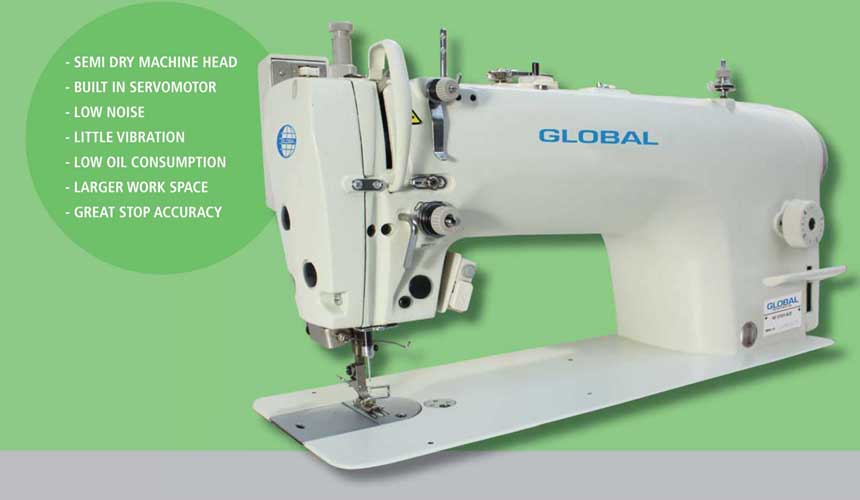

Global 3700 AUT - HIGH SPEED, SEMI DRY LOCKSTITCH MACHINE

Semi dry head, single needle lockstitch machine driven by built-in mini servo motor. Machine is equipped with a thread trimming device, automatic back tack, presser foot lifter and wiper (all electric).

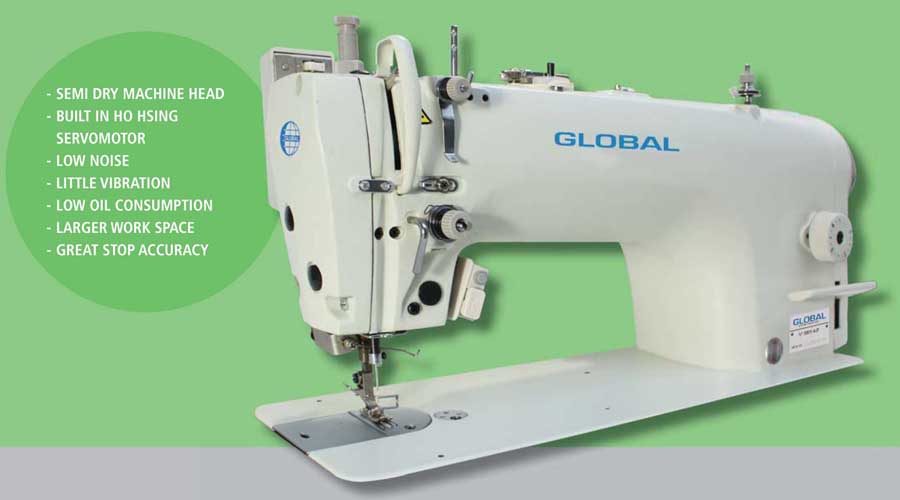

Global 3200 AUT Series - HIGH SPEED, SEMI DRY LOCKSTITCH MACHINES

3200 AUT - Semi dry head, single needle lockstitch machine driven by built-in Ho Hsing mini servo motor. Machine is equipped with a thread trimming device, automatic back tack, presser foot lift and wiper (all electric).

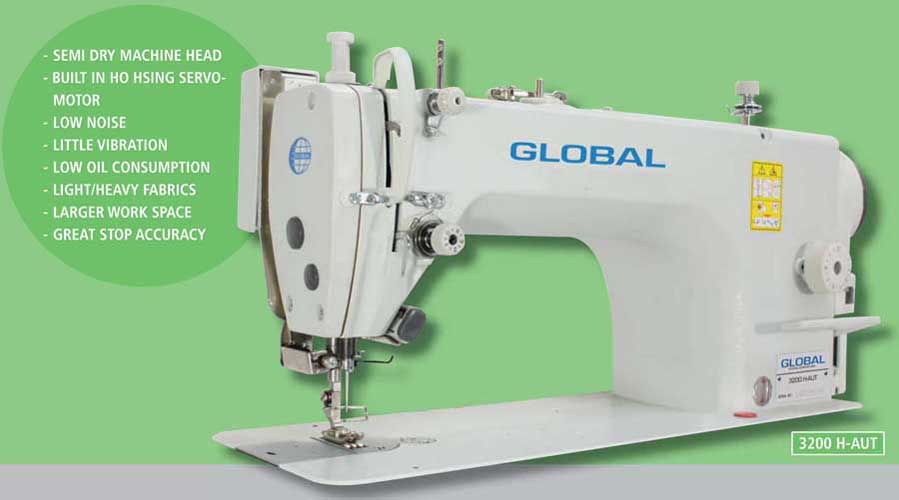

3200 H-AUT - Same as above, but equipped for medium to heavy work.

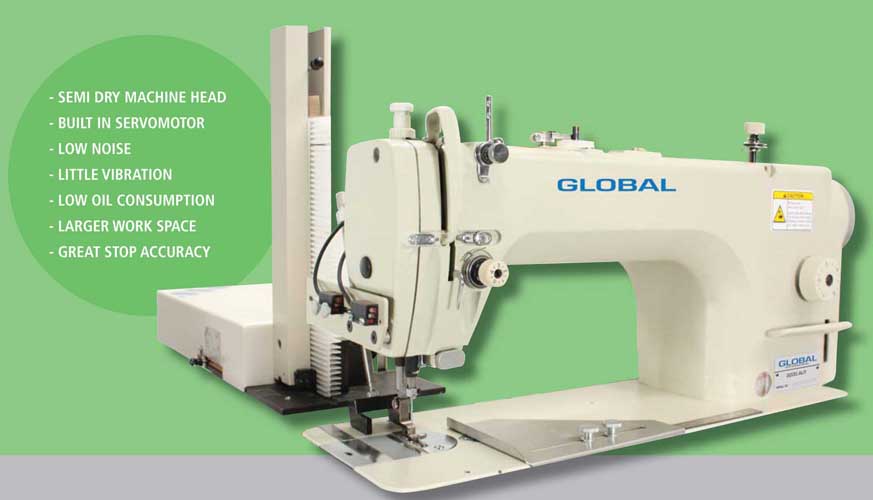

Global 3200 AUT HDF - CURTAIN HOOK ATTACHING MACHINE

Semi automatic lockstitch curtain hook attaching machine with fully automatic curtain hook feeding device.

  • • Versatile Global semi automatic high speed curtain hook attaching machine, for hook-sizes of 55 mm,75 mm, 95 mm.
  • • Quick load hook container, stores up to 100 hooks.
  • • Fully automatic curtain hook feeding device with automatic adjustment of the hook-height between 5 and 50 mm in steps of 5 mm.
  • • Sensor controlled positioning of the hook exactly under the needle.
  • • Special tack program for fi xation of the pleats ( separate operation).
  • • Capacity up to 1500 hooks a day.

Global SK Series - SINGLE NEEDLE LOCKSTITCH WITH EDGE CUTTER

333 SK - Single needle, drop feed lockstitch machine with edge cutter. Machine has fully automatic lubrication.

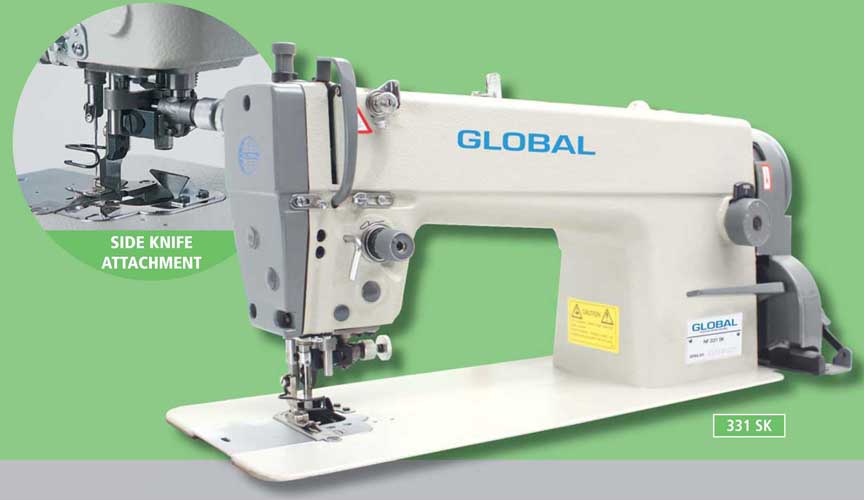

NF 331 SK - Same as above, but with needle feed.

NF 331 SK-AUT - Same as NF 331 SK, but with thread trimmer and automatic back tack.

Global 337 Series - TOP FEED LOCKSTITCH MACHINES

337 D - Single needle lockstitch machine with adjustable top feed mechanism. The top feed mechanism enables equal top and bottom feeding on diffi cult materials and can also be used for gathering work.

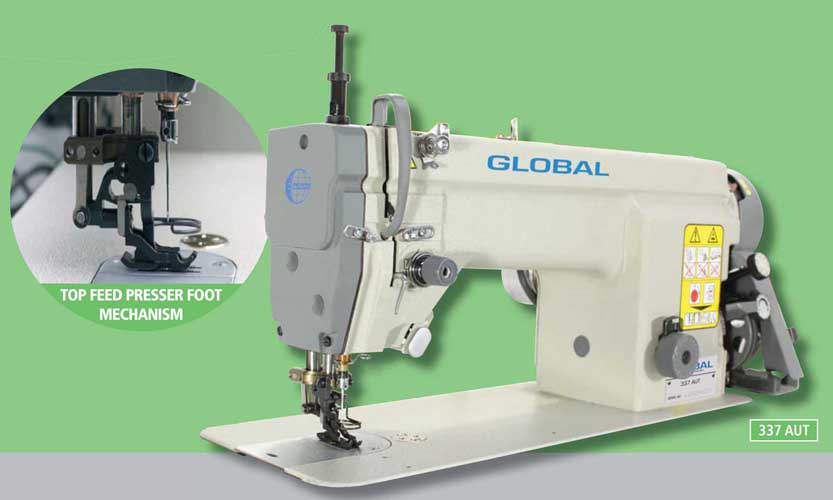

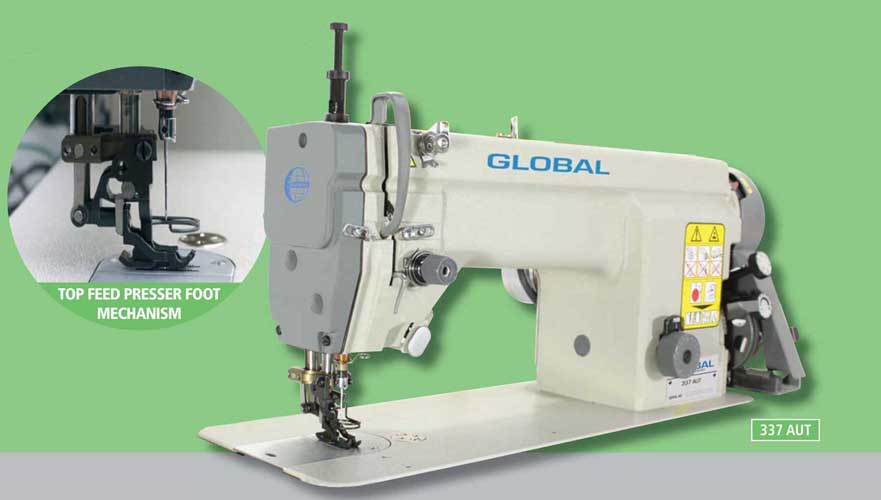

337 AUT - Same as above, but equipped with thread trimmer and automatic back tack.

Global NF 300 Series - SINGLE NEEDLE, NEEDLE FEED MACHINES

NF 331 - High speed single needle lockstitch machine with reversible needle feed. Machine has automatic lubrication. Stitch length 4 mm.

NF 331 LH - Same as above, but with large hook and 5 mm stitch length.

NF 331 AUT/strong> - Same as NF 331, but with thread trimmer and back tack (solenoid).

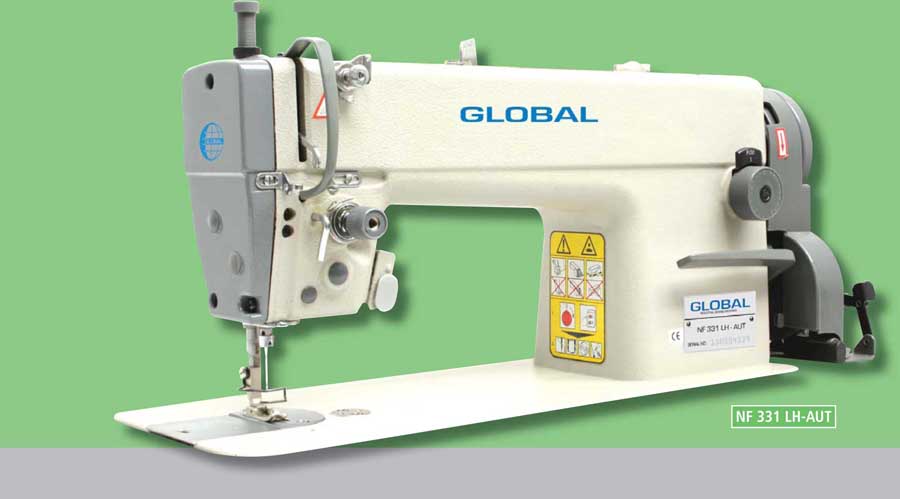

NF 331 LH-AUT - Same as NF 331 LH, but with thread trimmer and back tack (solenoid).

Global NF 3201 AUT - HIGH SPEED, SEMI DRY, NEEDLE FEED LOCKSTITCH MACHINE

Semi dry head, single needle, needle feed lockstitch machine driven by built-in Ho Hsing mini servo motor. Machine is equipped with a thread trimming device, automatic back tack, presser foot lift and wiper (all electric).

Global NF 3701 AUT - HIGH SPEED, SEMI DRY, NEEDLE FEED LOCKSTITCH MACHINE

Semi dry head, single needle, needle feed lockstitch machine driven by built-in mini servo motor. Machine is equipped with a thread trimming device, automatic back tack, presser foot lift and wiper (all electric).

Global DN 2200 Series - DOUBLE NEEDLE LOCKSTITCH MACHINES

DN 2242 - Double needle lockstitch machine with drop and needle feed. Fully automatic lubrication, standard hooks and 6,4 mm gauge.

DN 2242 LH - Same as DN 2242, but with large hooks

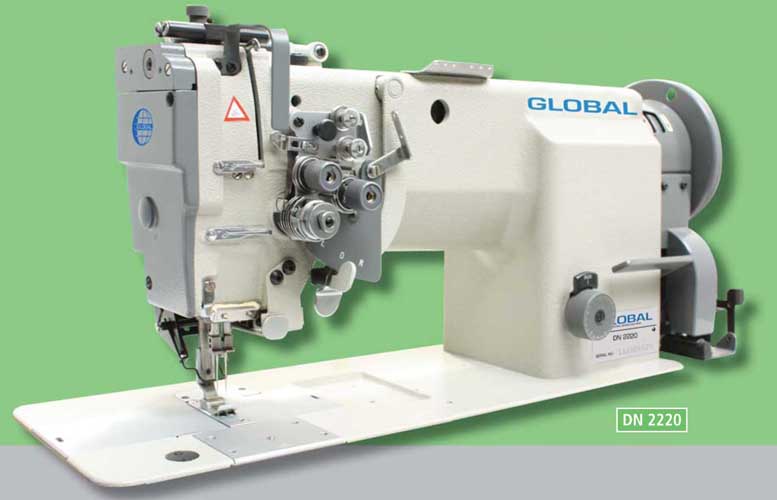

DN 2220 - Double needle lockstitch machine with drop and needle feed. This machine is equipped with disengageable needle bars. Fully automatic lubrication, standard hooks and 6,4 mm gauge.

DN 2220 LH - Same as DN 2220, but with large hooks.

Global DN 2200 AUT Series - DOUBLE NEEDLE LOCKSTITCH MACHINES

DN 2242 AUT - Double needle lockstitch machine with drop and needle feed. Machine is equipped with under bed thread trimmer and auto back tack (electric). Machine has standard vertical axis hooks.

DN 2242 LH-AUT - Same as DN 2242 AUT, but with large hooks.

DN 2220 AUT - Double needle lockstitch machine with drop and needle feed. The machine is equipped with under bed thread trimmer and has manually disengageable needle bars and auto back tack (electric). Machine has standard vertical axis hooks.

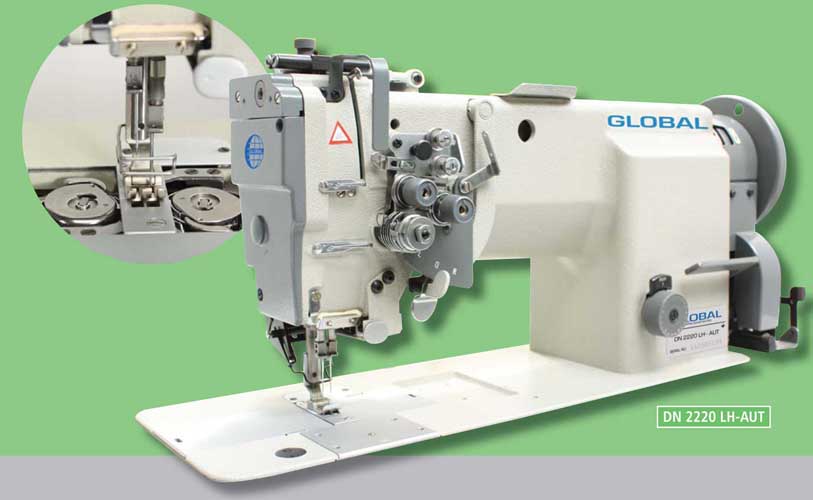

DN 2220 LH-AUT - Same as DN 2220 AUT, but with large hooks.

Global DN 8400 Series - DOUBLE NEEDLE LOCKSTITCH MACHINES

DN 8442 - Double needle lockstitch machine with drop and needle feed. Fully automatic lubrication, standard hooks and 6,4 mm gauge.

DN 8442 LH - Same as DN 8442, but with large hooks.

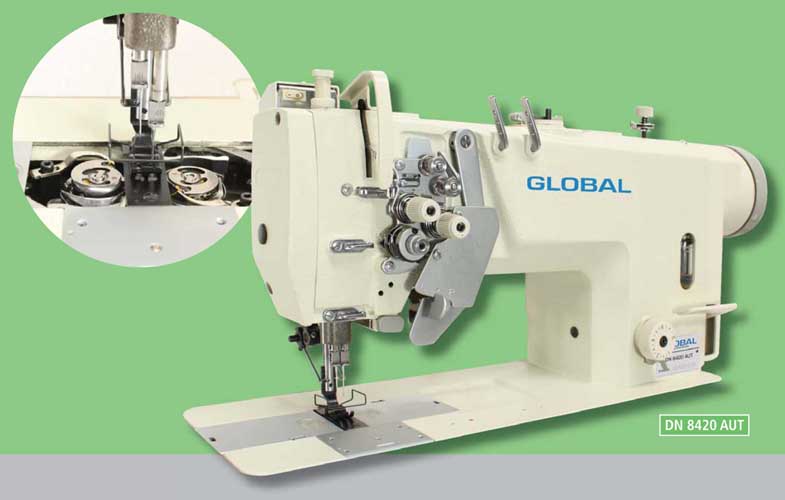

DN 8420 - Double needle lockstitch machine with drop and needle feed. This machine is equipped with disengageable needle bars. Fully automatic lubrication, standard hooks and 6,4 mm gauge.

DN 8420 LH - Same as DN 8420, but with large hooks.

Global DN 8400 AUT Series - DOUBLE NEEDLE LOCKSTITCH MACHINES

DN 8442 AUT - Double needle lockstitch machine with drop and needle feed. This machine is driven by Ho Hsing direct drive AC servomotor. Machine is equipped with under bed thread trimmer, presser foot lift, automatic back tack and wiper (all electric). Machine has standard vertical axis hooks.

DN 8442 LH AUT - Same as DN 8442 AUT, but with large hooks

DN 8442 LH AUT - Same as DN 8442 AUT, but with large hooks

DN 8442 LH AUT - Same as DN 8442 AUT, but with large hooks

Global PW 2045 Series - AUTOMATIC POCKETWELTING MACHINE

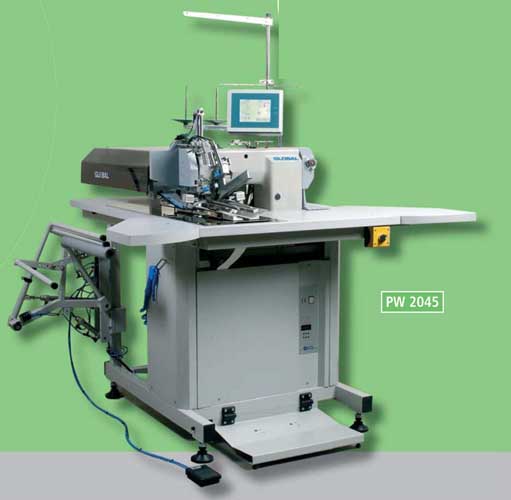

PW 2045 - Automatic lockstitch pocket welting machine suitable to sew a single or a double welt, with or without fl ap (fl ap must be loaded manually). The machine is equipped with an interlining feeding device and pneumatic stacker. Standard needle gauge 12 mm. This machine is designed to meet the requirements of a high quality pocket welt for men’s and ladies wear.

PW 2045 SP - Same as above, but also equipped to sew slant pockets.
